Technical Parameter WAF-1050

Technical Parameter

Model

WAF-1050

Metering Way

By Weighing

Feeding Way

Dual-Screw Feeding

Dosing Range

10-50Kg

Accuracy

±10-30g depend on product's spec and filling weight

Speed

3-6 bags/min

Container Type

Kraft bag, Plastic bag, Paper box, Cylinder, etc.

Air Pressure

0.6MPa

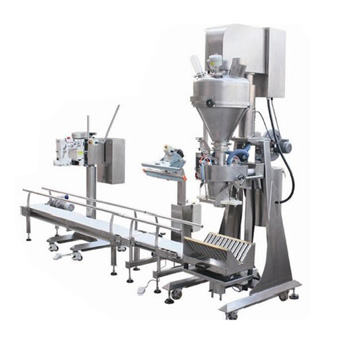

Technical Parameter SAF-550W

Technical Parameter

Model

SAF-550W

Metering Way

Auger and load cell feedback

Dosing Range

100g-25kg (changing dosing auger)

Accuracy & Speed

A:Filling without clamp: packing rang 100-3000g, accuracy ±0.3-1%, speed:≤35 bag/minB:Filling with clamp and weighing system: packing range 3-25kg, accuracy±2-10g, speed:1-8bag/minRemark: accuracy depends on product product property, speed depends on manually bag feeding speedand packing weight. More smaller for packing weight, more faster for packing speed. and more highfor accuracy, more slow for packing speed.

Container Type

Small Can or Pre-made Bags

Hopper Size

100L

Power Supply

3-phase 380V 50/60Hz,4.2KW

Machine Weight

600kg

Technical Parameter  Pneumatic conveying system

Technical Parameter

Model

SAF-300

SAF-350

SAF-450

Dosing Way

Auger

Auger

Auger

Dosing Range

0.1-100g

10-500g

10-2000g

Accuracy

±0.3% (depend on product's spec and filling weight)

±0.3-1% (depend on product's spec and filling weight)

±0.3-1% (depend on product's spec and filling weight)

Hopper Size

8L

25L

50L

Container Type

Cans, Jars or bags

Cans, Jars or bags

Cans, Jars or bags

Power Supply

Single 220V 50/60Hz

Single 220V 50/60Hz

Single 220V 50/60Hz

HMI

KINCO 7 inch color

KINCO 7 inch color

KINCO 7 inch color

Touch Screen

Panasonic PLC

Panasonic PLC

Panasonic PLC

Servo Motor

Panasonic 750W

Panasonic 750W

Panasonic 750W

Inverter

Schneider (Control agitator)

Schneider (Control agitator)

Schneider (Control agitator)

Agitator

Jinlong 0.25KW

Jinlong 0.25KW

Jinlong 0.55KW

Technical Parameter Pneumatic conveying system

Technical Parameter

Model

VFFS-420

VFFS-520

VFFS-620

VFFS-720

Packing Speed

25-70bags/min

25-70bags/min

20-60bags/min

20-60bags/min

Bag Width

≤ 200mm

≤ 245mm

≤ 295mm

≤ 345mm

Bag Length

≤ 300mm

≤ 350mm

≤ 400mm

≤ 450mm

Air Consumption

0.6MPa  ≤  0.3 m3 /min

Power Suppy

3.0KW

3.5KW

4.0KW

4.5KW

Voltage

Single-phase 220V, 50Hz

EAC-1-89-1900Hopper Size: 100L
EAC-1-89-1900
Hopper Size: 100L
EAC-12-219-1900Hopper Size: 350L
EAC-12-219-1900
Hopper Size: 350L
U-tube Auger Conveyor‍
U-tube Auger Conveyor
EAC-3-114-1900:E-Easy Dismantle A-AugerC-Conveyor3-The capacity 3m3/hr based on 1900mm discharge height114-Auger Tube Diameter1900-Discharge Height
EAC-3-114-1900:
E-Easy Dismantle A-Auger
C-Conveyor
3-The capacity 3m3/hr based on 1900mm discharge height
114-Auger Tube Diameter
1900-Discharge Height
